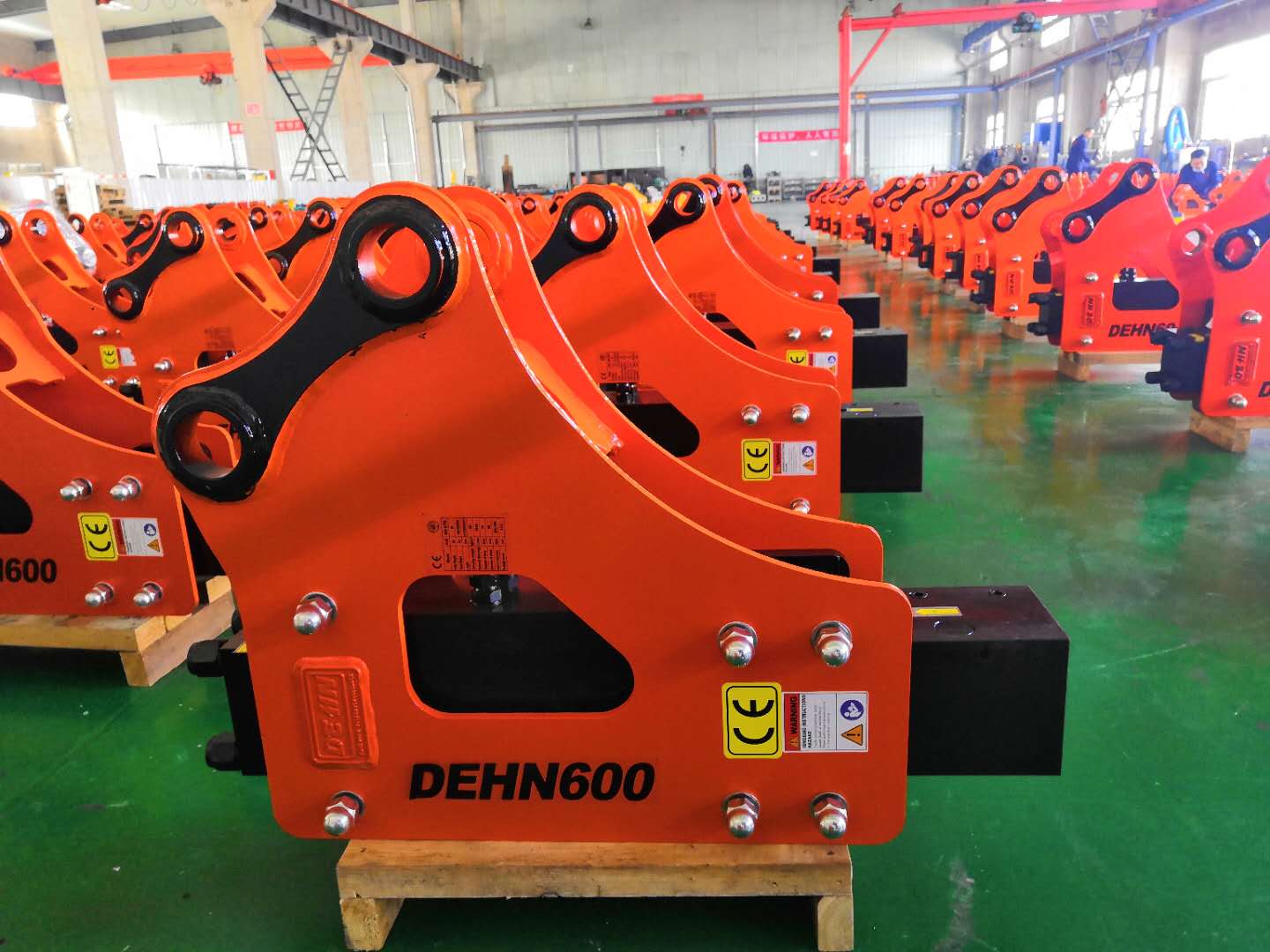

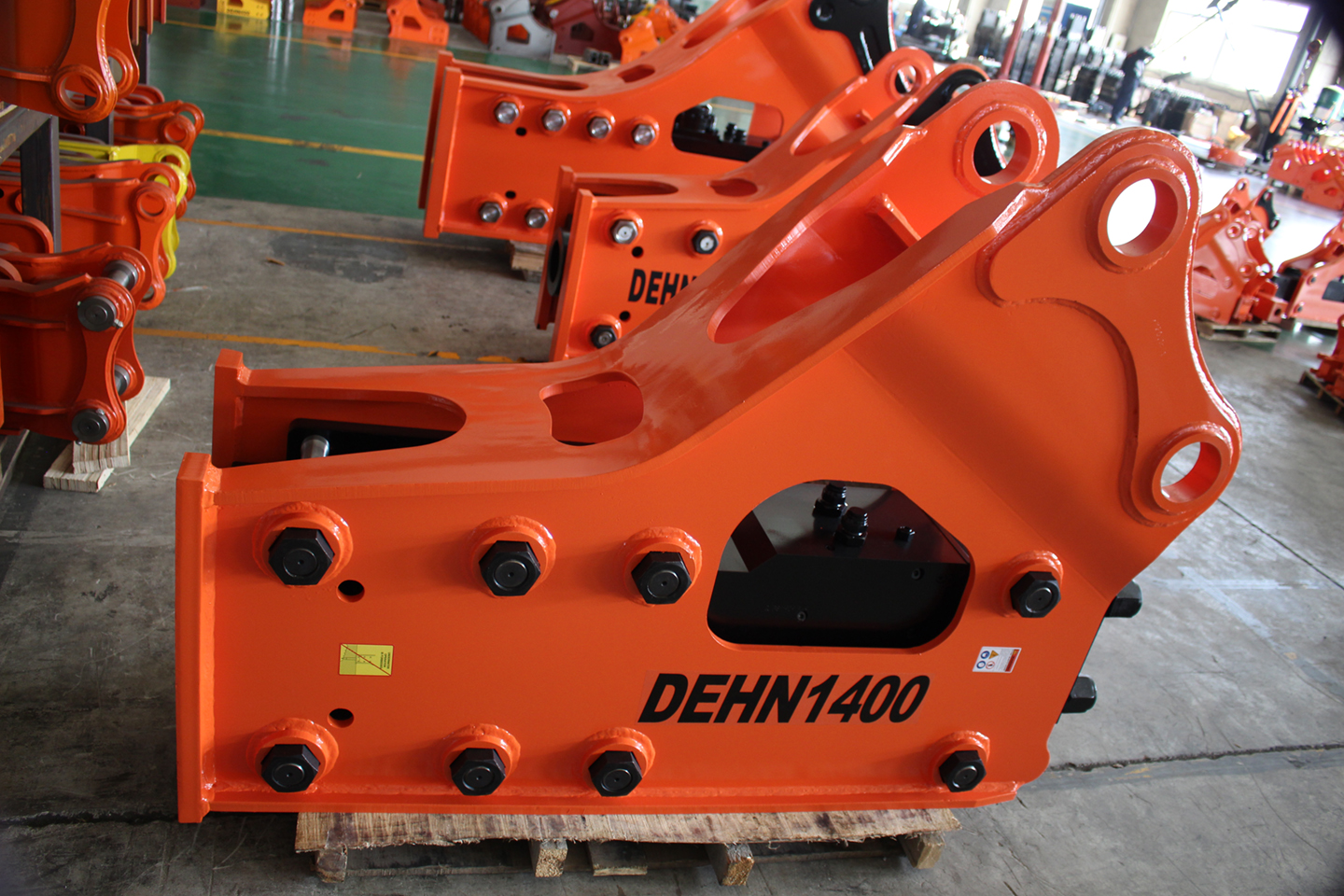

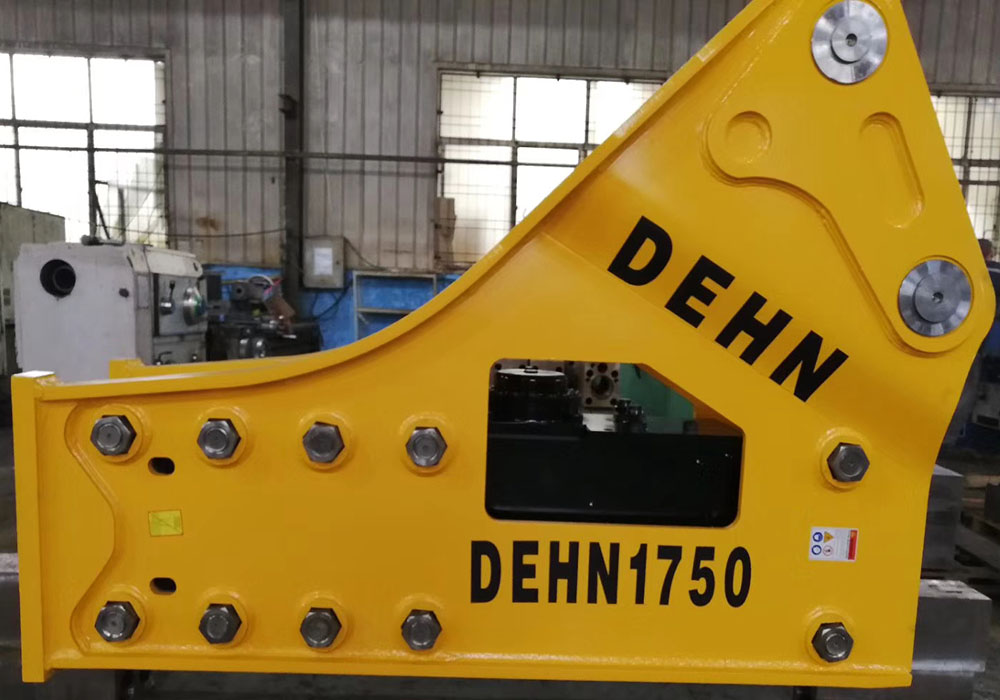

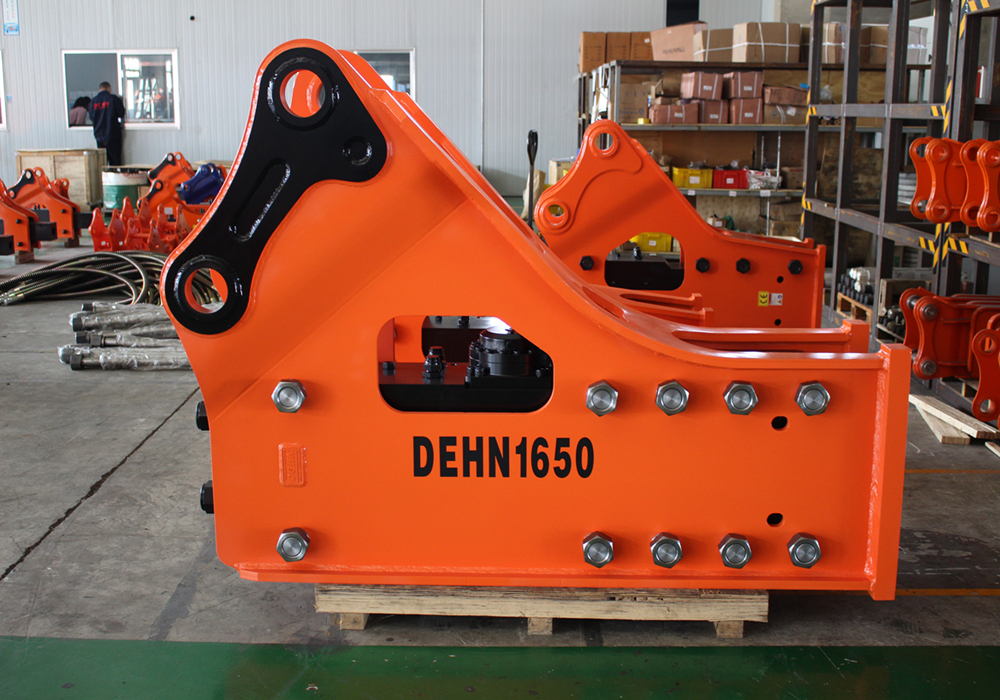

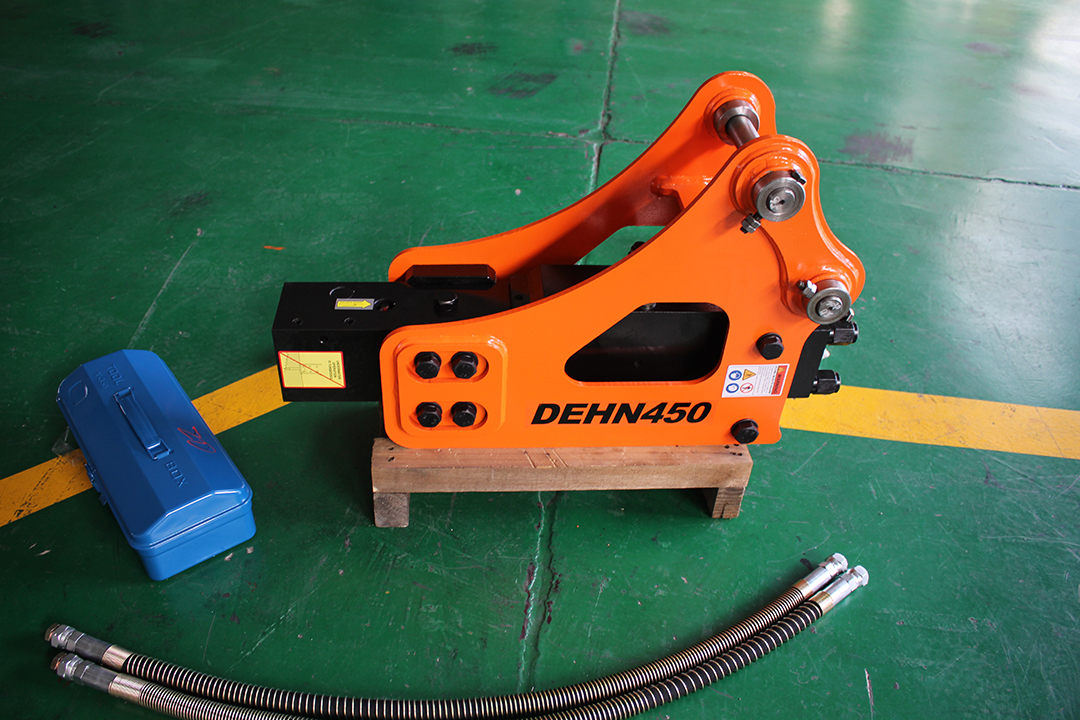

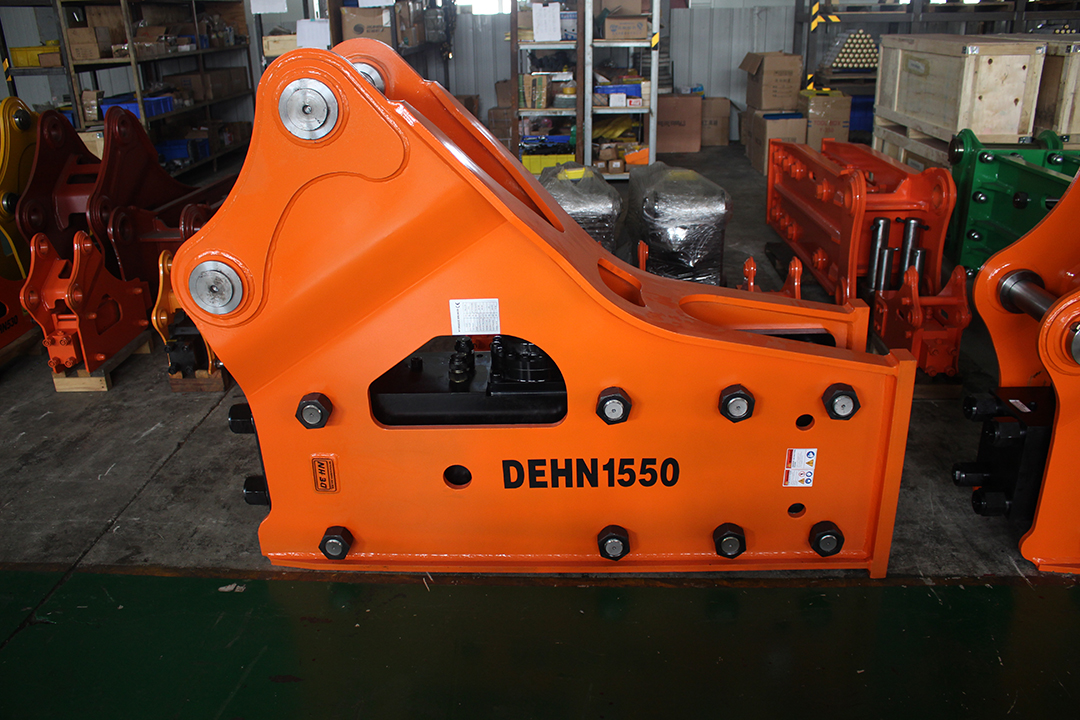

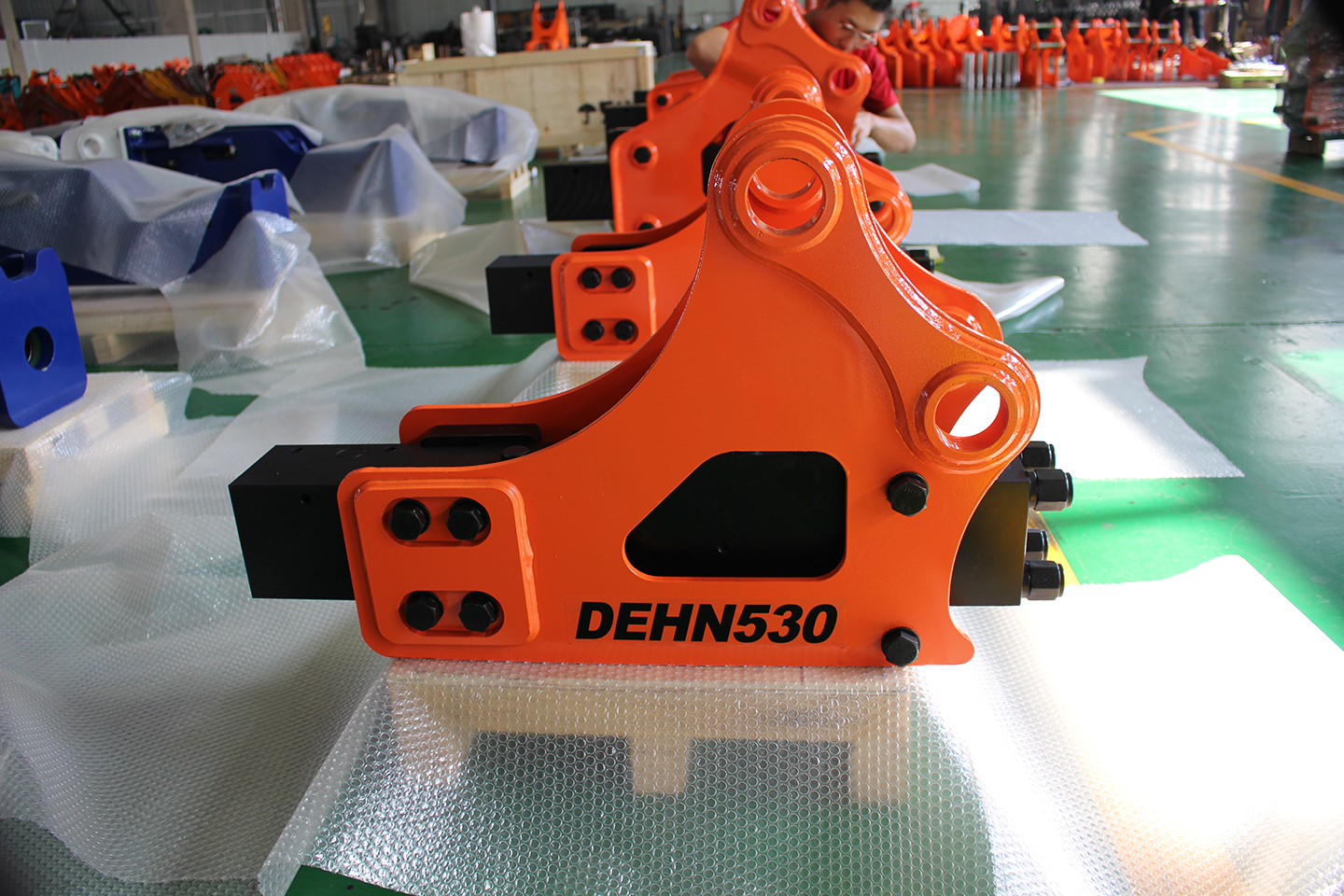

side type

The power source of the hydraulic hammer is the pressure provided by excavators, loaders or pumping stations. It can break the stones and rocks more effectively and improve the work efficiency. The principle of selecting hydraulic hammer is to select the most suitable hydraulic hammer according to the type of excavator and the working environment

  • 产品描述

Product Description



Product Description


model
Company DEHN400 DEHN450 DEHN530 DEHN600 DEHN680 DEHN750 DEHN850 DEHN1000 DEHN1250 DEHN1350 DEHN1400 DEHN1550 DEHN1650 DEHN1750

Host weight (triangular /

straight / silent)

kg 70/75/102 95/95/126 138/138/152 180/180/224 263/263/299 334/335/375 559/569/589 761/866/861 1277/1308/1371

1653

/1847/1510

1774/

2059/1866

2577/

2745/2968

2751/

3156/2916

3905/

4057/3902

Length (triangular /

straight / silent)

mm

910/

1086/1190

1090/

1235/1331

1178/

1344/1417

1239/

1460/1472

1375/

1684/1660

1515/

1706/1712

1735/

2120/2074

1994/

2387/2354

2286/

2673/2578

2423/

2900/2847

2480/

2866/2793

2776/

3102/3075

2820/

3285/3337

3184/

3812/3723

Working flow
1iter/min 15-25 20-30 25-50 30-60 40-70 50-90 60-100 80-110 90-120 130-170 120-180 180-240 200-260 200-260
Hydraulic oil pressure kg/cm² 160 160 160 160 170 170 190 190 190 210 210 230 240 240
working pressure kg/cm² 90-120 90-120 90-120 100-130 110-140 120-170 127-147 150-170 150-170 160-185 160-185 170-200 160-180 180-200
beat frequency bpm 800-1400 700-1200 600-1000 500-1000 500-900 400-800 400-800 400-650 350-650 400-165 350-500 300-450 250-400 200-350
Tool diameter mm ¢40 ¢45 ¢53 ¢60 ¢68 ¢75 ¢85 ¢100 ¢125 ¢135 ¢140 ¢1550 ¢162 ¢1750
tube diameter inch 1/2 1/2 1/2 1/2 1/2 1/2 1/2 3/4 3/4 1 1 1 5/4 5/4
back head pressure kg/cm² 16 16 16 16 16 16±0.5 16±0.5 16±0.5 15-18 16±0.5 16±0.5 16±0.5 16±0.5 16±0.5
Accumulator pressure kg/cm² / / / / / / / / / 60 60 60 60 60
Matching vehicle weight ton 0.8-2.5 1.2-3.0 2.5-4.5 3-5.5 4-7 6-9 7-14 10-15 15-18 18-25 18-26 27-36 30-40 35-40
Matching bucket capacity 0.07 0.03-0.1 0.06-0.2 0.06-0.2 0.15-0.25 0.2-0.4 04-0.6 0.5-0.6 0.4-0.6 0.6-1.0 0.9-1.2 1.0-1.4 1.6-2.2 1.6-2.2
Main valve type
internal internal internal internal internal internal internal internal internal internal internal internal internal

internal

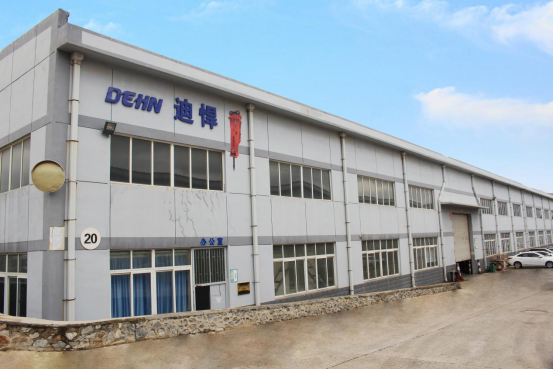

Company Profile



DEHN brand has been approved CE certificate and 4 product patents since 2010. By using the piston recoil energy, to increase performance without additional hydraulic flow input, DEHN rock breakers could achieve optimum performance at low cost, in addition to the SIMPLE body design, with only 2 moving parts, leading to lowest maintenance and repairing cost, which eventually makes your investment best valued!



FAQ


1.Is that the main body color customized?

Sure ,but we recommend you yellow, blue and orange.

2. How many days for the delivery time ?

It is about 3-7 working days after the order confirmation.

3. What kind of payments you accept?

Now we accept T/T, L/C or Western Union, other terms also could be negotiated,

4. Are you able to manufacturing products according to customer's design?

Sure, we have made many special orders from abroad since 2010.So we have enough ability to deal with any cases. OEM certificate is available to provided .

5.What's your advantages in the machinery manufacturing industry?

Fast delivery time ,High quality products, Best customer service ,Adopting the latest production technology.

6. Are you sure that your product will fit my excavator?

Our chisel can be adapted to different excavators. Show me your model number, and we would find you best match products.

7. How about the packing of the goods?

We follow the standard export package, wood cases, or as customers' demands

8. How about the packing of the goods?

Standard export package, wood cases, or as customers' demands.
